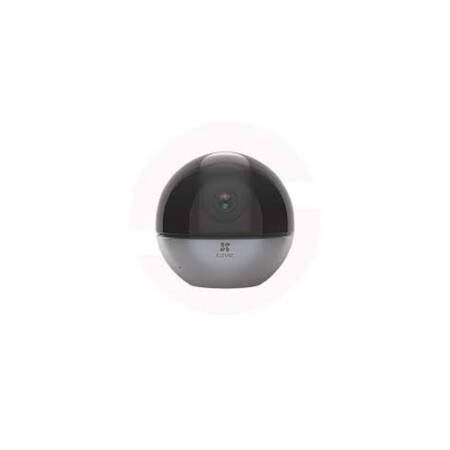

CS C6W A0 3H4WF
2 sold in last 20 hoursLast updated: 27-05-2023
Model: CS C6W A0 3H4WF
Item Code: xxxGA
- DNR 3D DNR
- WDR True-WDR
- BLC Supports
- Night Vision 10m
Specifications:
| Model Parameters | |
|---|---|
| Model | CS-C6W-A0-3H4WF |
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F2.0, view angle: 83° (Horizontal), 57° (Vertical), 104° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 75° |
| Minimum Illumination | 0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | True-WDR |
| BLC | Supports |
| Night Vision | 10m |
| Video & Audio | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max: 25fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4Mbps |
| Storage | |
| Local Storage | MicroSD card slot (Max. 256G) |
| Cloud Storage | EZVIZ Cloud Storage |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.412 GHz ~ 2.472 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| General | |
| Operating Conditions | -10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 2A |
| Power Consumption | MAX. 8W |
| Dimensions | 95.8 x 95.8 x 90.6 mm (3.77 x 3.77 x 3.57 inch) |
| Packaging Dimensions | 126 x 126 x 160 mm (4.96 x 4.96 x 6.30 inch) |
| Net Weight | 252 g (8.89 oz) |
| Weight | 513 g (1.13 oz) |
| Function | |
| Smart Alarm | AI Person Detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| In the box: | |
| In the box: | C6W Camera ; 3-Meter Power Cable ; Power Adapter ; Drill Template ; Base ; Screw Kit ; Regulatory Information ; Quick Start Guide |
| Certifications: | |
| Certifications: | CE / WEEE / REACH / RoHS / FCC / UL |
