2 sold in last 16 hoursDescription:

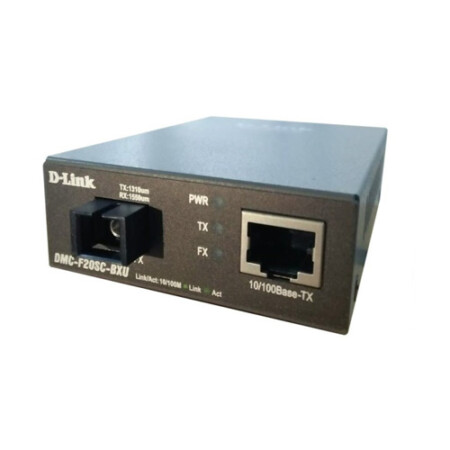

Media Converters DMC-F20SC-BXD and DMC-F20SC-BXU perform conversion of interfaces “twisted pair – a single-mode fiber optic cable over a single fiber” for the Ethernet 10 / 100BASE-TX and 100BASE-FX network. The devices can simultaneously transmit and receive signals at wavelengths between 1310 nm and 1550 nm over a single optical fiber for distances up to 20 km.
Media Converters DMC-F20SC-BXD and DMC-F20SC-BXU have 1 RJ-45 twisted pair port and 1 port for an optical cable (SC-connector). In the twisted pair port supports auto speed, mode (full-duplex or half-duplex), polarity MDI / MDI-X, which simplifies installation in existing network media converter. Converter supports the function of LLR (Link Loss Return) for the optical port.
Specifications:
| Characteristics | ||
| Interfaces | Port 10 / 100BASE-TX Port 100BASE-FX single-fiber FX (SC connector) | |
| standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX, 100BASE-FX | |
| Wavelength | TX: 1550nm, RX: 1310nm, 20km | |
| Optical Output Power (TX) | Max .: -3 dBm Min .: -12 dBm | |
| Optical input power (RX) | Max .: 0 dBm Min .: -32 dBm | |
| Sensitivity | 32 dBm | |
| Transmission speed | 148,800 pps max. | |
| Indicators | Power, Link / Act / Speed | |
| The maximum packet size | 1600 bytes | |
| Power Supply | 5V / 1A, external power adapter | |
| Power consumption | Max. 2.17 W | |
| heat release | Power on. (Standby mode): at a variable power at the input of 5.29 BTU / hr Max .: 7.40 BTU / hr | |
| MTBF | 482.583 hours | |
| Dimensions | 70 x 95 x 25 mm | |
| Working temperature | 0 C ~ 50 ºC | |
| Storage temperature | -10 ~ 70 ° C | |
| Humidity | Operating: 10% ~ 90% Storage: 5% ~ 90% | |
| Certifications | EMI: CE class A, FCC class A, VCCI class A, BSMI class A Safety: LVD, UL / cUL |
Brand
D-LINK
