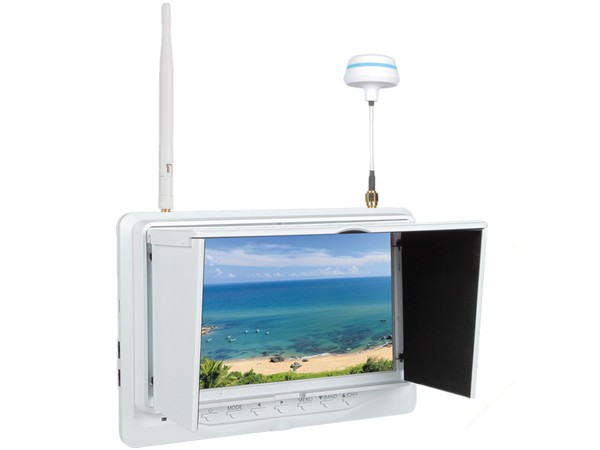

SEETEC 7″ MONITOR BUILT-IN BATTERY DUAL 32CH 5.8G DIVERSITY RECEIVERS

Model:FPV718W Specification
Description
7” super slim FPV Monitor built-in battery
dual 32CH 5.8GHz diversity receivers
Model FPV718W
Dot Resolution 1024×600
Dot pitch 0.05(W) × 0.15(H) mm
Aspect Ratio 16:9
Brightness 500cd/m²
Contrast Ratio 700:1
Backlight LED
Response Time 10ms
Viewing Angle 75°/75°（L/R） 70°/75°（U/D）
Support video format PAL-4.43;NTSC-3.58
Input Signals Mini HDMI、AV、RF
Output Signals AV ,3.5mm Earphone Jack
HDMI Mode 480i /480p /576i /576p
Built-in battery 77.240vp/2 /210008m0iA（2 hours）
Input Voltage 9-18V
Power Consumption ≤10W(with battery)
workingTemperature -20℃～50℃
storage Temperature -30℃～65℃
Install Way “1/4”-20 Thread mounting socket
Unit Size 190mmx134mmx18mm
Unit Weight 440g
Advanced Features
1. Super Light and Slim 18mm Width
2. Built-in integrated lipo battery
3. Channel Auto searching ,selection via button
4. Best Channel Receiption via Antenna Auto-switching
56.. 5V.i8dGeoH oz,u3t2pu Ctsh aannnde DlsC R oeuctepivuetr to connect and
power other equipment
7. High resolution 1024×600,Bright 500cd/m²
8. No blue screen
9. High Sensitivity:-90dBM
10. Compable with all 5.8GHz transmitters 32ch, such as
1F1a.t sNhoatr ka,f fBeocstecda mby 2.4ghz radio controller
Photography Functions
*Focus Assist
*Check Field(Red,Green,Blue,Mono)
*Camera 5D II Mode
*Screen Marker
*Centre Marker
*4:3&16:9 image adjustable
*Full Screen Display in mode of Monitoring & Recording
